Netflix Zuul

学习Netflix Zuul

Imagem de capa

理解

疑问

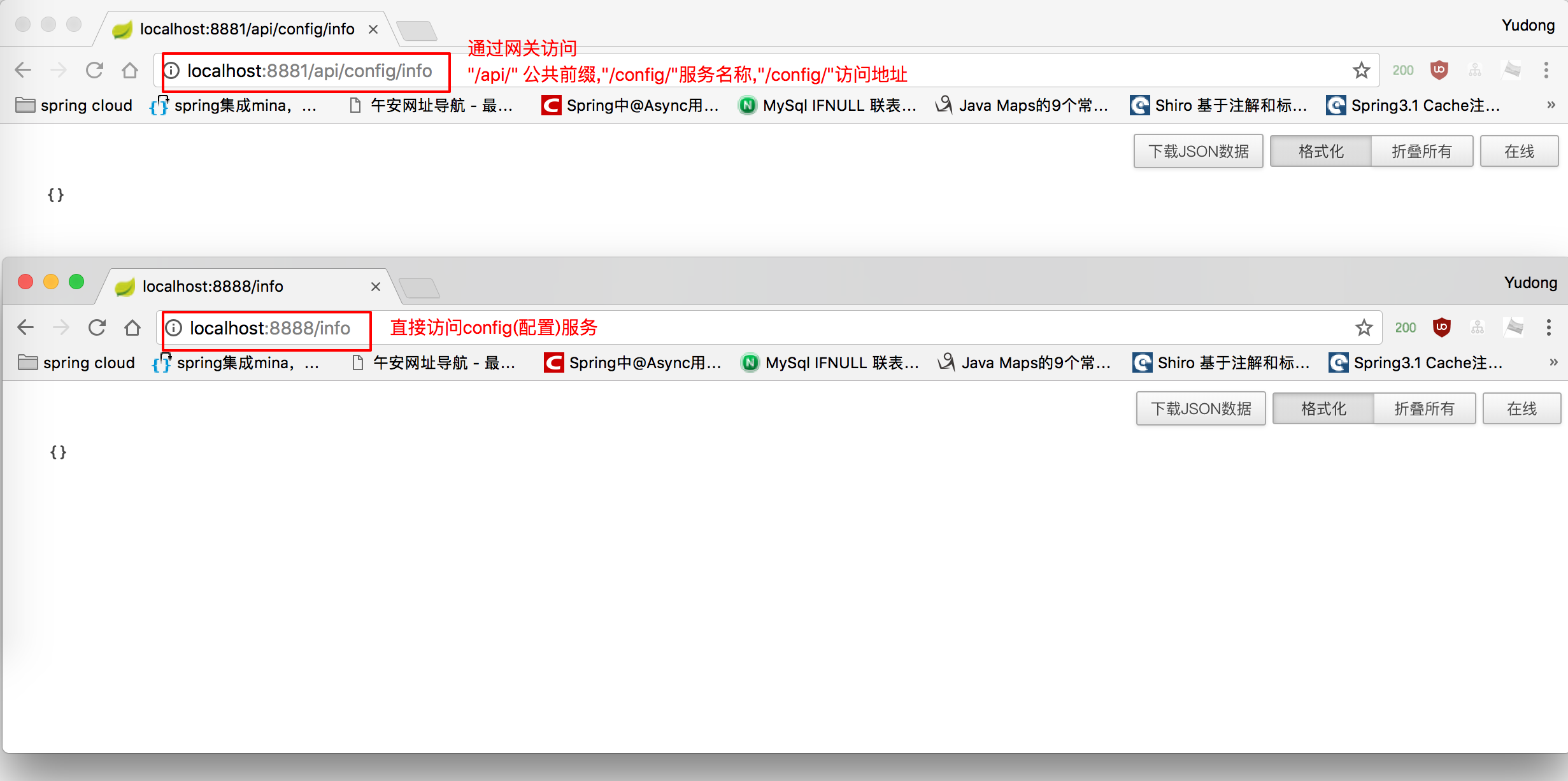

怎么判断访问通过zuul(网关)服务? placeholder

架构图

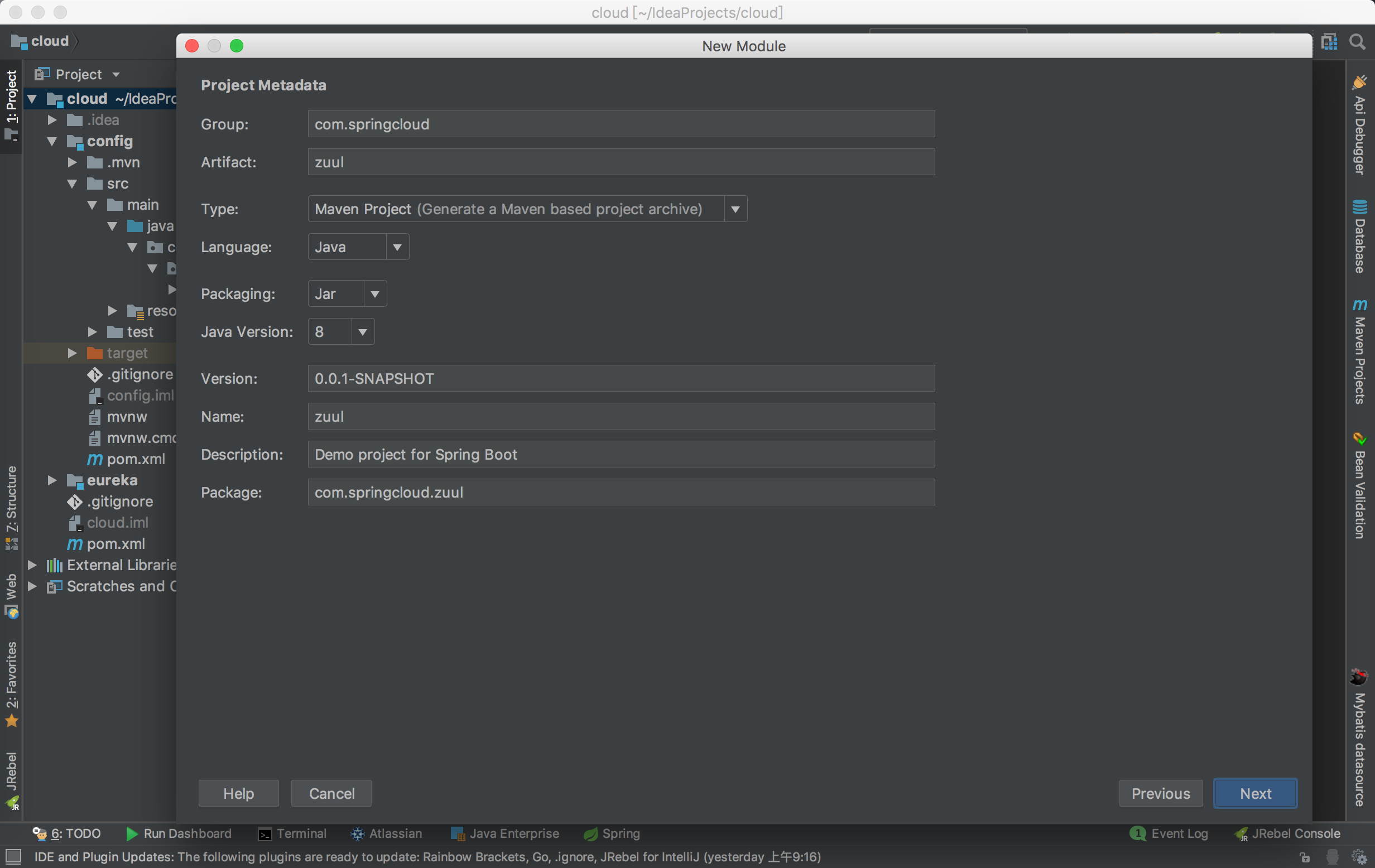

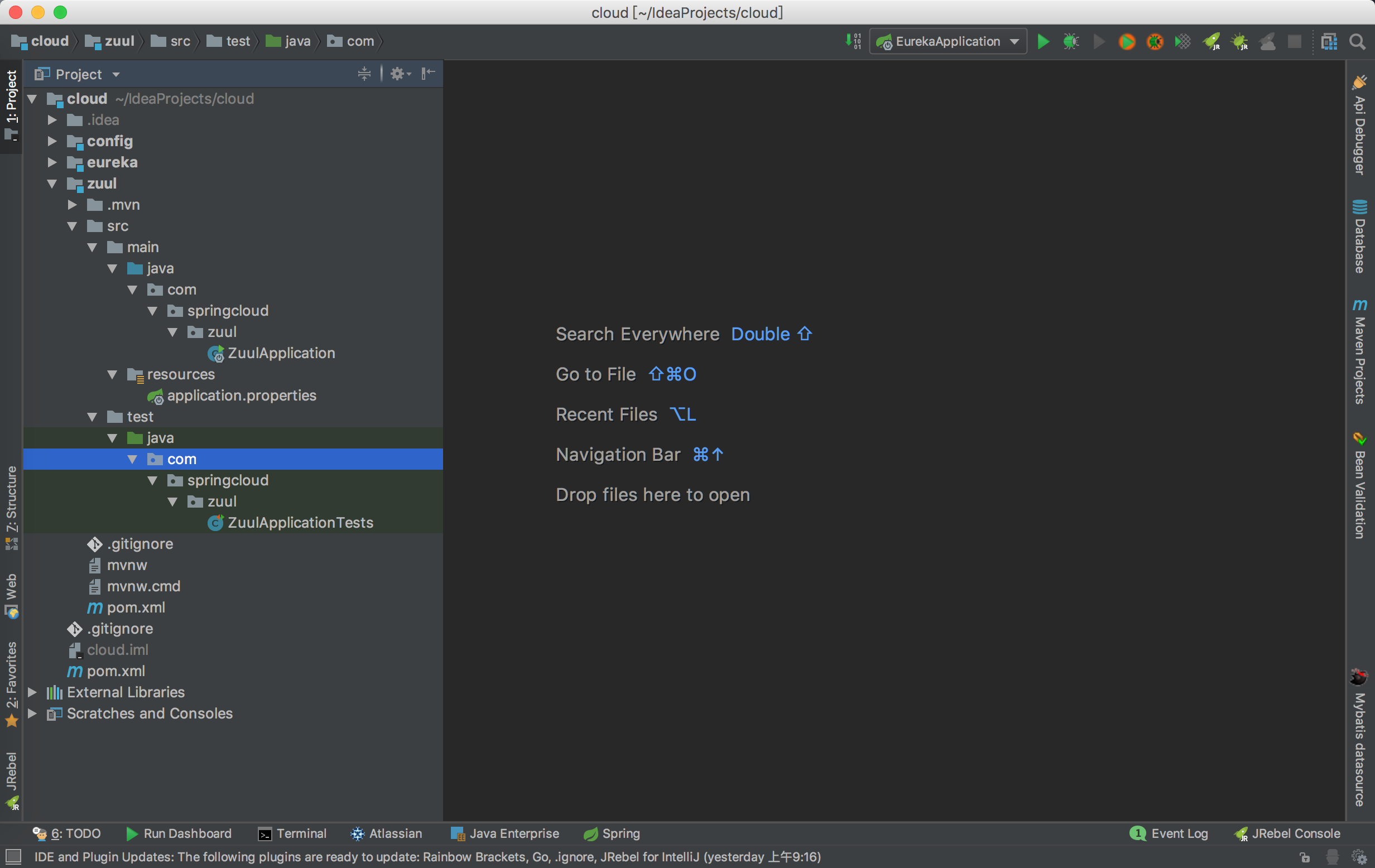

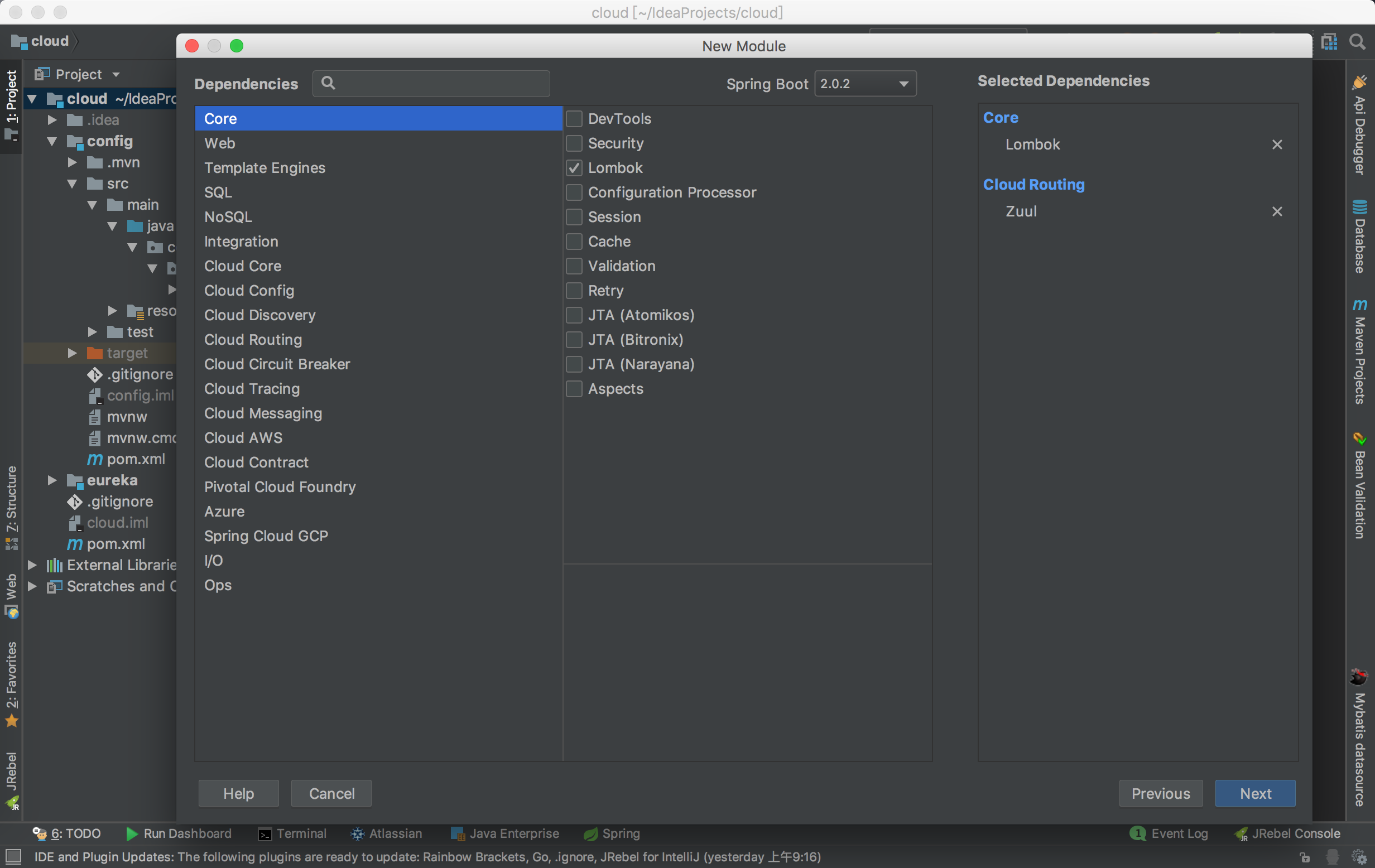

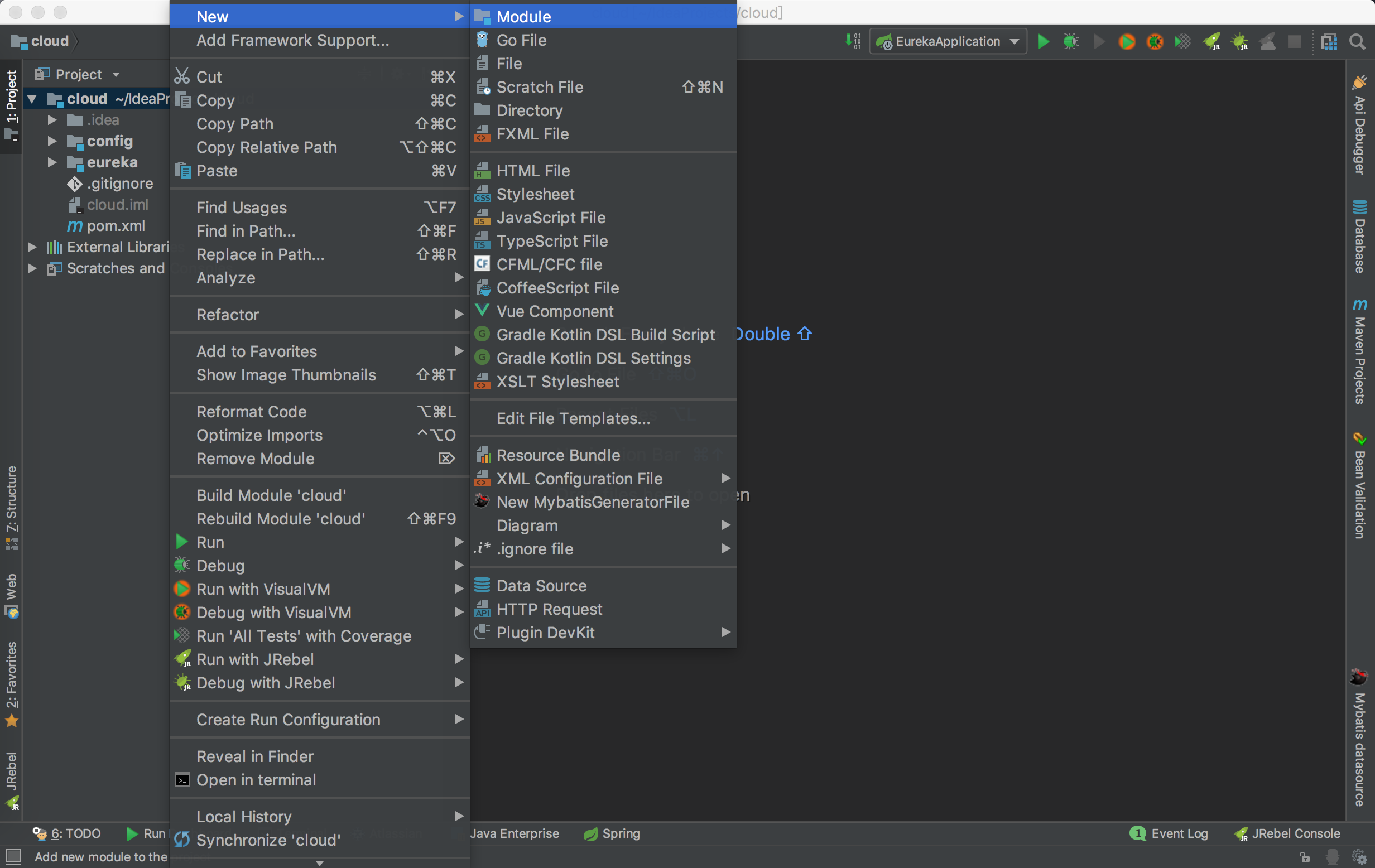

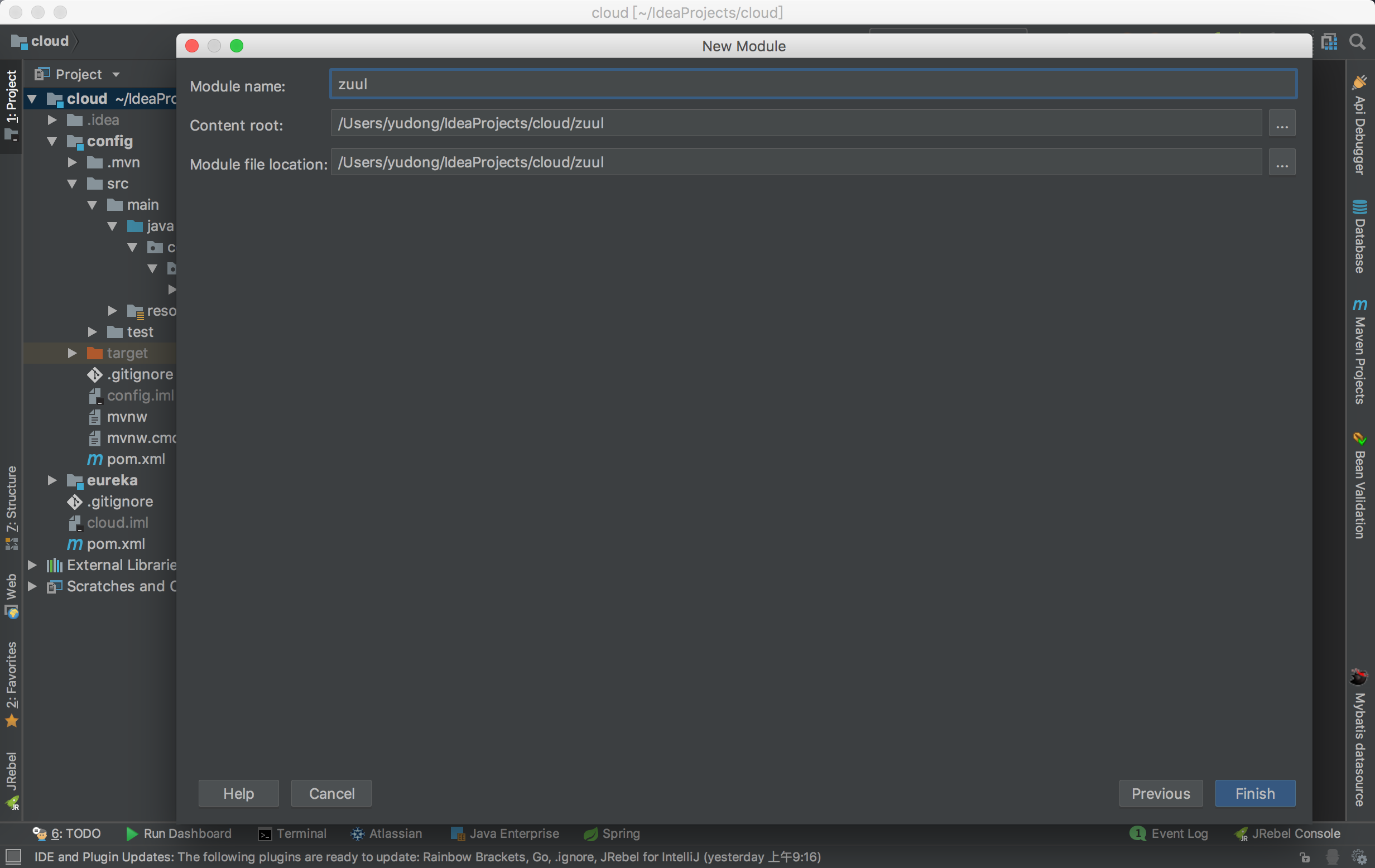

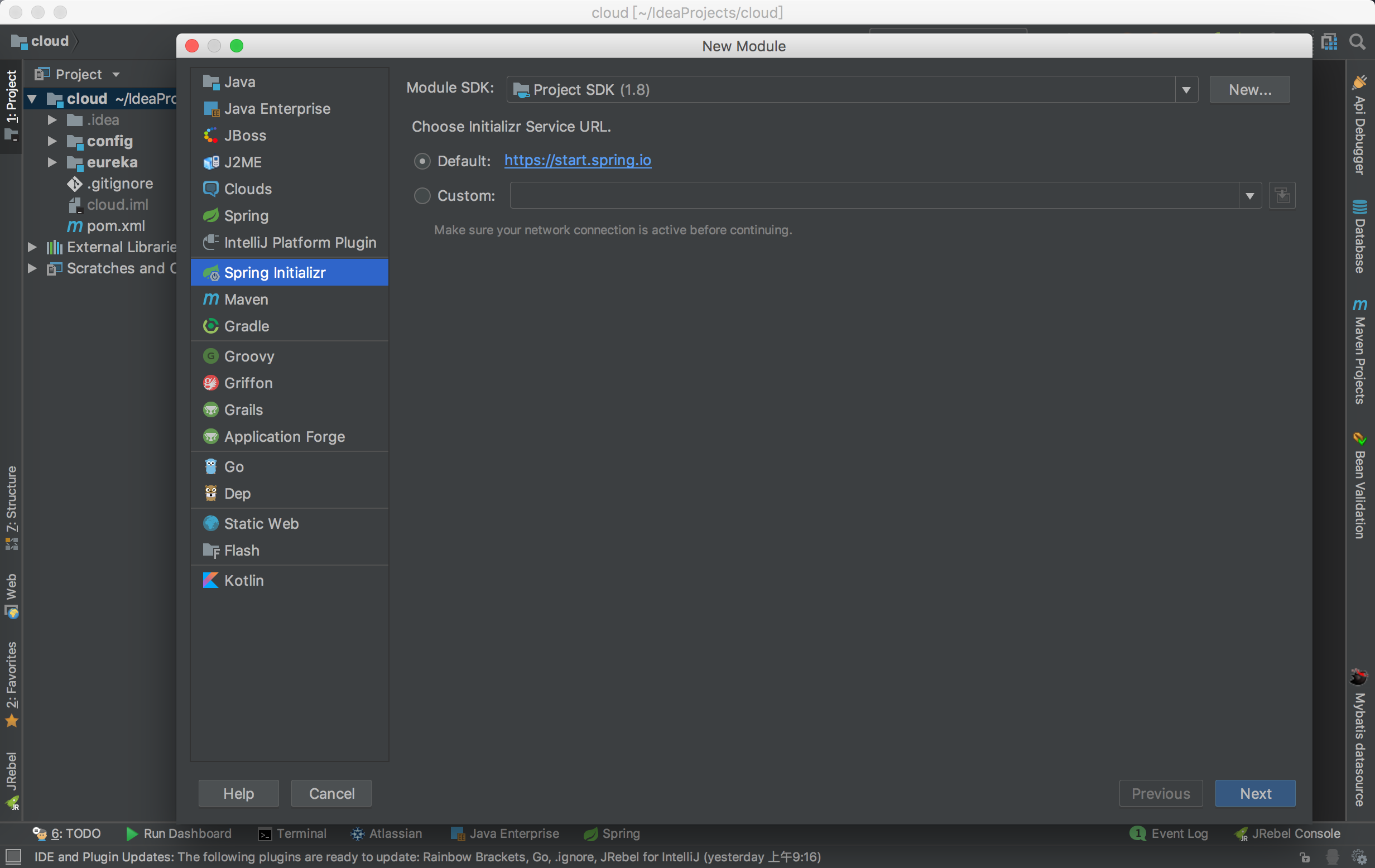

创建项目

前提环境 IDEA,JDK1.8

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.springcloud</groupId>
    <artifactId>zuul</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>zuul</name>
    <description>Demo project for Spring Boot</description>

    <parent>
        <groupId>com.springcloud</groupId>
        <artifactId>cloud</artifactId>
        <version>0.0.1-SNAPSHOT</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zuul</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>


    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

        <module>zuul</module>

server:
  port: 8881

spring:
  application:
    name: zuul

eureka:
    instance:
        statusPageUrlPath: /info
        healthCheckUrlPath: /health
        prefer-ip-address: true
        ip-address: 127.0.0.1

zuul:
  ignored-services: "*"
  sensitive-headers:
  prefix: /api #为zuul设置一个公共的前缀
  routes:
    config:
      path: /config/**
      serviceId: config
    eureka:
      path: /eureka/**
      serviceId: eureka

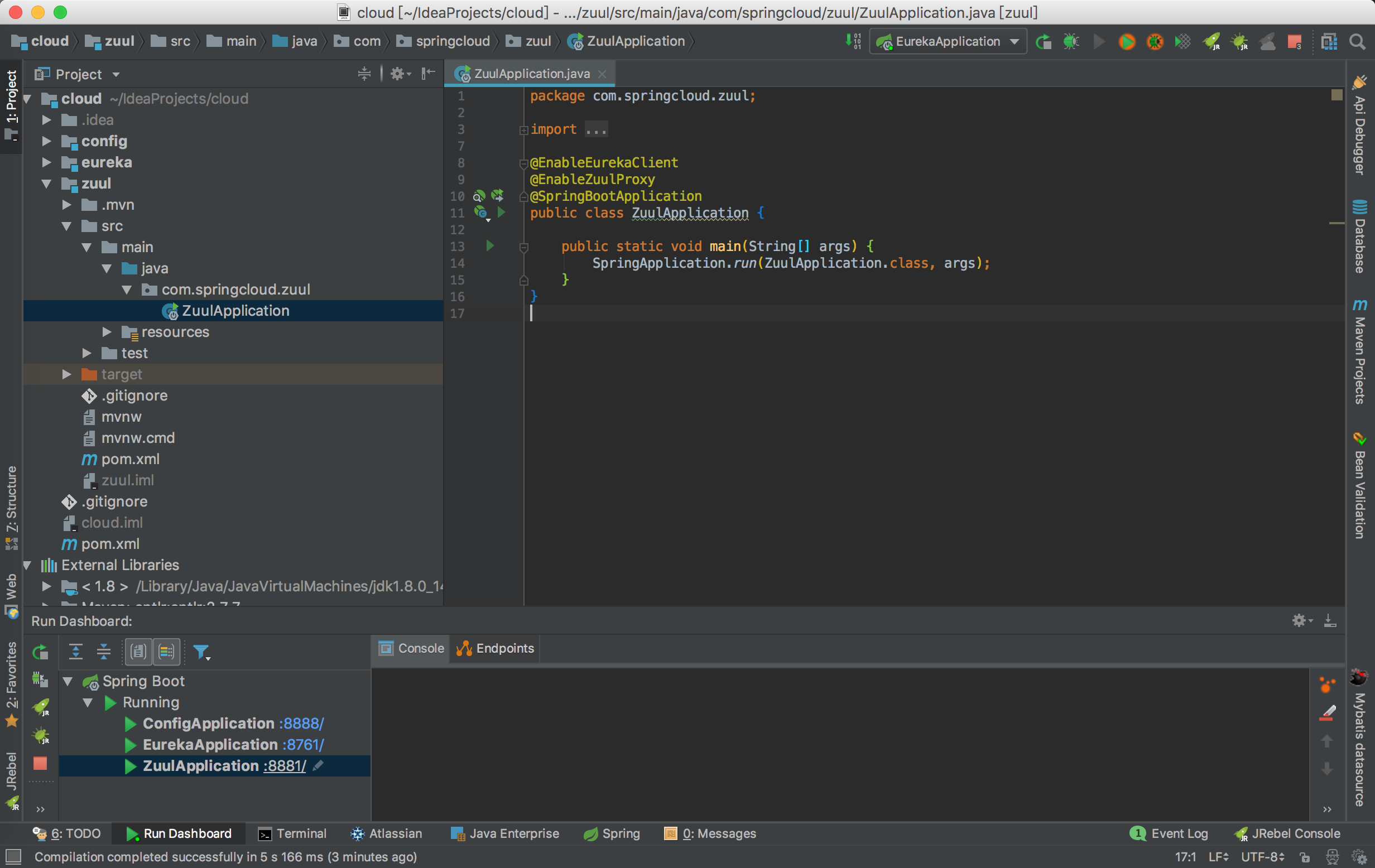

placeholder
